BOSE® ShowMatch DeltaQ SMS118

Descriptions détaillées

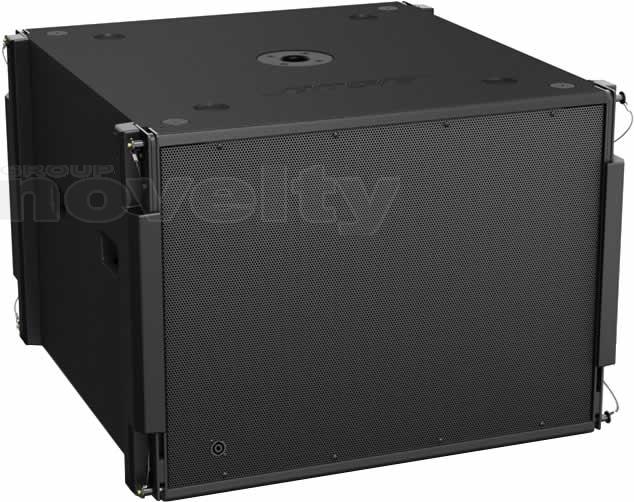

Bose Professional ShowMatch™ SMS118 subwoofers are designed primarily to integrate with DeltaQ™ array loudspeakers and extend low-frequency response down to 29 Hz.  The SMS118 enclosure width and integrated rigging allows fast integration in arrays with ShowMatch full-range modules using optional array frames and accessories. The portable-rated Baltic birch enclosure may also be used for ground-stack applications and includes an integrated mounting-pole adapter for use with other mid/high loudspeakers.

FEATURES
DeltaQ™ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
ShowMatch DeltaQ companion 1x 18” subwoofer for low-frequency extension down to 29 Hz with mixed mid/high and subwoofer ShowMatch arrays

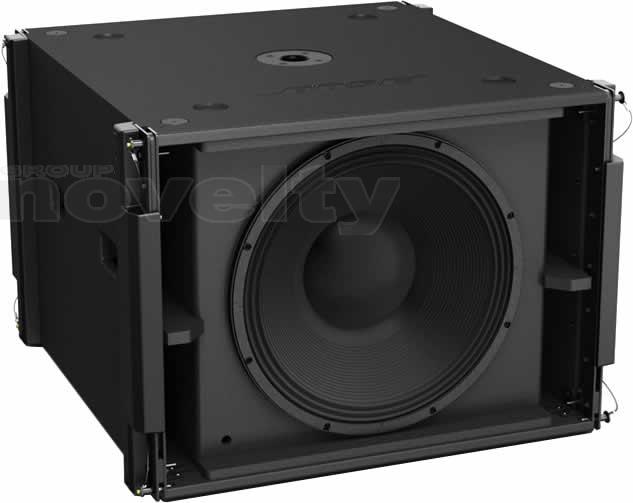

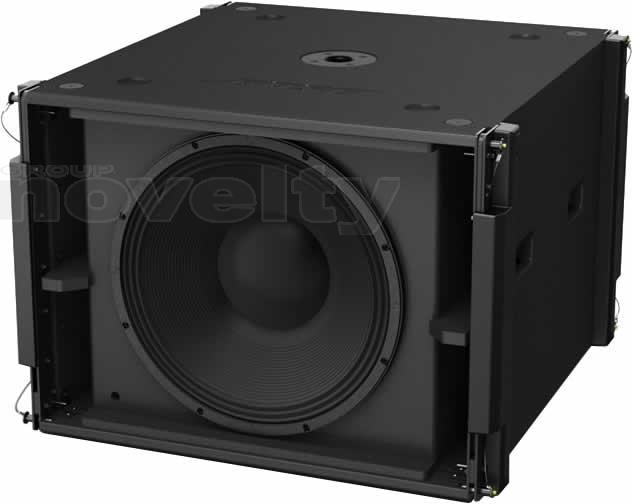

Bose LF18 neodymium 18-inch, high-excursion, 4.5-inch voice coil, transducer provides maximum performance (same transducer as in Bose RMS218)

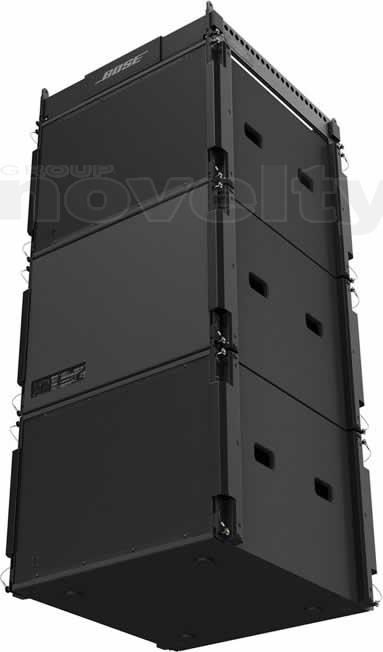

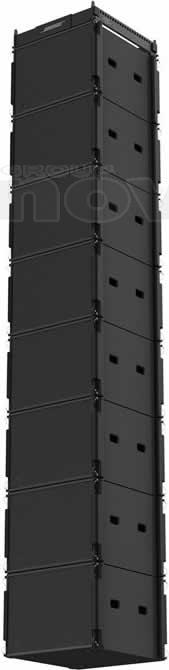

Integrated 4-point “quick pin” rigging allows arrays of up to 18 subwoofers with 10:1 safety factor

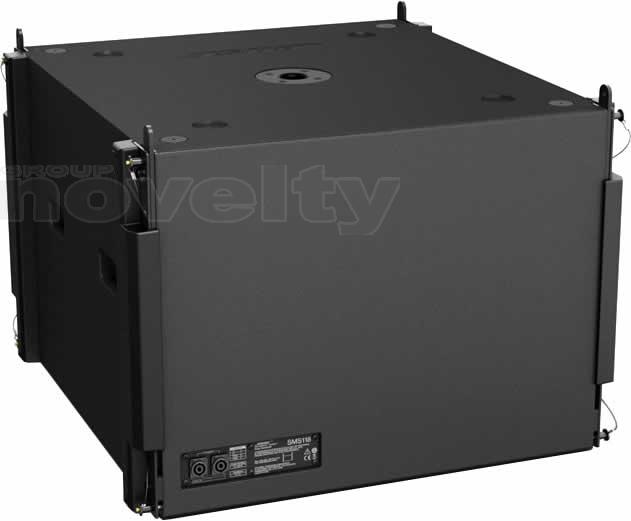

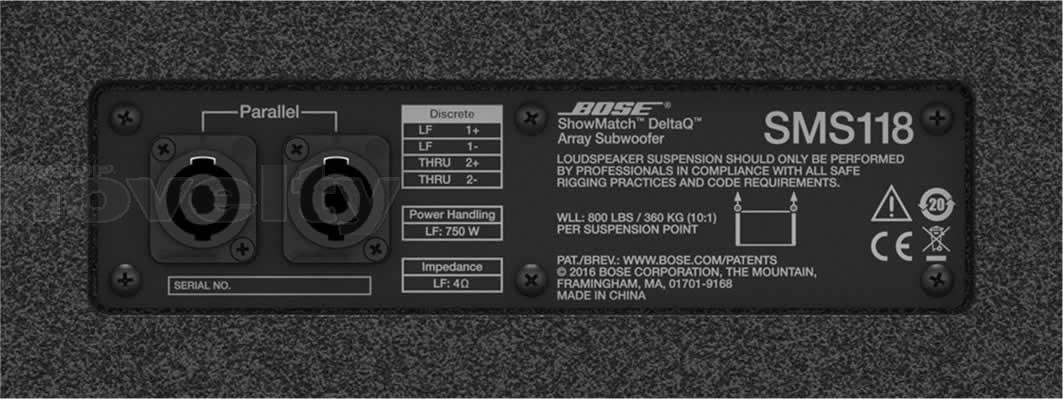

Front-grill mounted NL4 input, plus rear NL4 inputs, allow easy setup for “reversed box” cardioid arrays

Applications

• Theaters
• Houses of worship
• Auditoriums
• Performing arts venues
• Arenas

SPECS

• Frequency Range (-10 dB) : 29 Hz - 300 Hz
• Power Handling, Peak : 3000 W per woofer
• Sensitivity (SPL / 1 W @ 1 m) : 92 dB
• Calculated Maximum SPL @ 1 m, peak
  • Array Position (free field): 127 dB
  • Ground Stack (half space): 133 dB
• Nominal Impedance : 4 Ω
