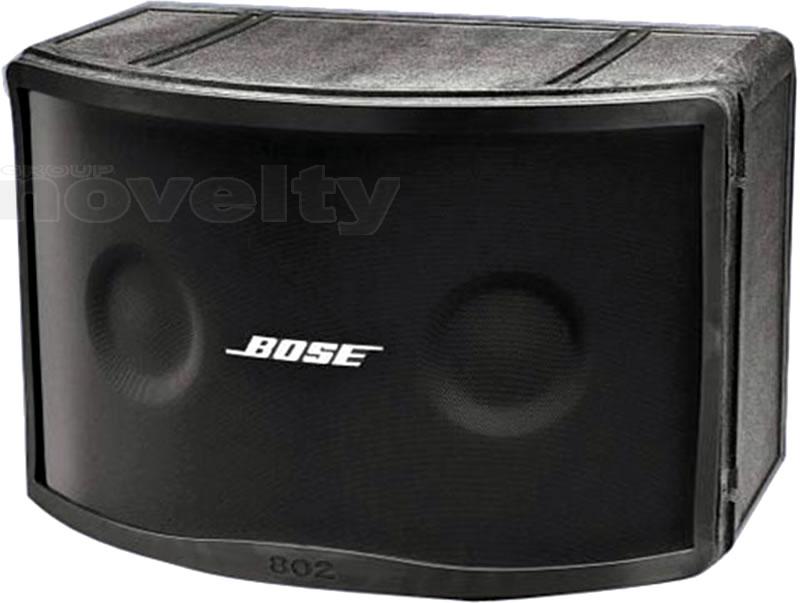

BOSE® 802 III

Descriptions détaillées

Hear the next step in innovation.

Get the audio quality, versatility and durability you need with the new 802® Series III loudspeaker. We enhanced our flagship professional loudspeaker to deliver high-output performances for medium-size clubs, large indoor venues and outdoor spaces. New drivers and active equalization help reproduce vocals and musical instruments with improved smoothness and warmth—at low or high volumes, from live or recorded music.

High-performance sound

Deliver clear, lifelike sound and avoid acoustical "deadspots" with Bose® 4.5-inch drivers and Articulated Array® speaker configuration. The 802 Series III loudspeaker uses eight proprietary full-range drivers to provide a more consistent sound field than conventional speakers that rely on woofers, tweeters and crossovers. Our proprietary speaker configuration uses a baffle array for each driver to provide wide horizontal and vertical dispersion over all bandwidths.

Durability

Need a speaker that works as hard as you do? The 802 III speakers are now part of our new Installed Anywhere® speaker line, meeting our strictest standards for outdoor use. The transducer has been upgraded to withstand snow, sleet and rain, severe cold, high heat and humidity—the worst that Mother Nature can dish out. The input/output connectors are extremely rugged and reliable, and the sturdy yet lightweight mica-reinforced polyethylene cabinet stands up to severe weather and frequent transporting.

Portability

It doesn't matter how great you sound if you can't get your gear to the event. That's why we designed the compact 802 III speakers for remarkable portability. Setup and tear-down are a snap and new sleeker styling conserves space both on stage and in the van. A full line of brackets and stands further accommodates a wide variety of configurations.

Great sound systems start with great speakers. Start yours today with Panaray 802 Series III speakers. Contact us for the Bose authorized dealer nearest you.

Technical Summary

• Frequency Response (+/-3 dB) ?60 Hz - 15 kHz
• Frequency Range (-10 dB) ?50 Hz - 16 kHz

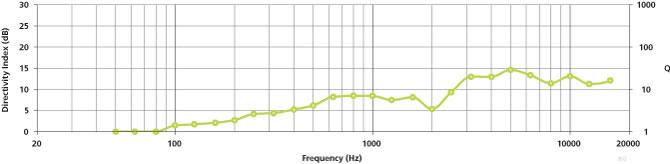

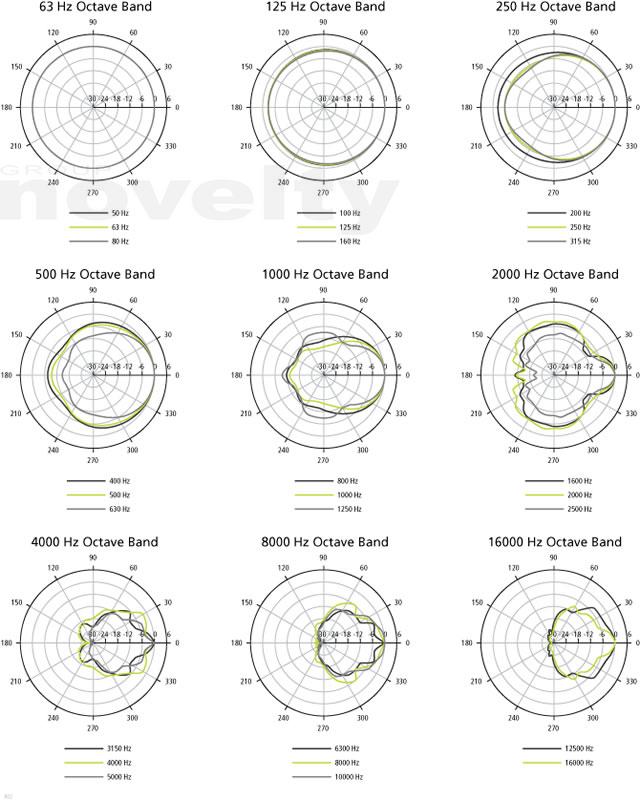

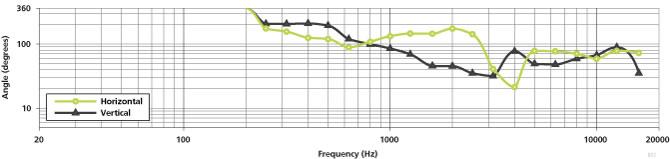

• Nominal Dispersion ?120° H x 100° V
• Long-Term Power Handling ?240 W (960 W peak)
• Sensitivity (SPL / 1 W @ 1 m) ?91 dB SPL
• Maximum SPL @ 1 m ?116 dB SPL (122 dB SPL peak)

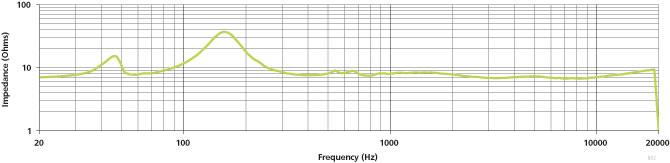

• Nominal Impedance ?8 Ω

Applications

• Auditoriums
• Gymnasiums
• Restaurants and bars
• Fitness clubs
• Theme parks
• DJs, musicians, etc.
• Outdoor event venues

Key Features

• Articulated Array® design provides 120° x 100° coverage to deliver wide-range reproduction over a broad dispersion area

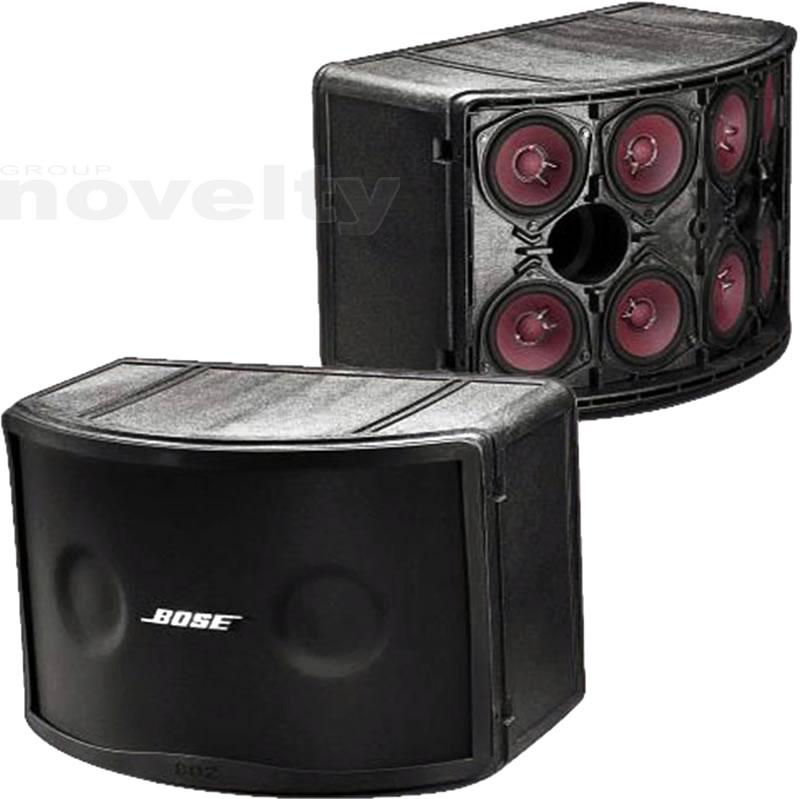

• Eight Bose® 4.5" (114 mm) full-range drivers for unsurpassed natural sound quality. Eliminating tweeters and crossover provides lifelike vocal and instrument reinforcement
• Frequency range down to 50 Hz allows full-range speech and light music reinforcement without the need for subwoofers in many applications
• Rugged, lightweight enclosure featuring a metal grille and protective cover with carrying handle

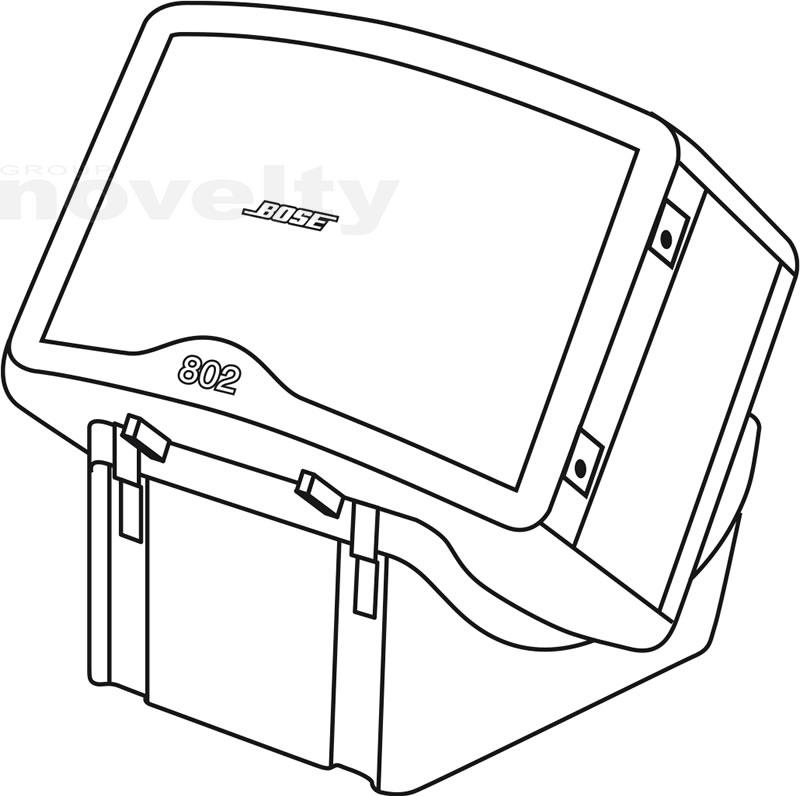

• Protective cover doubles as a handle and monitor stand
• Weather-resistant design for indoor and outdoor applications

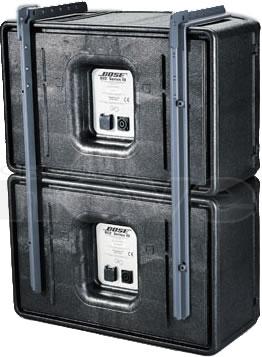

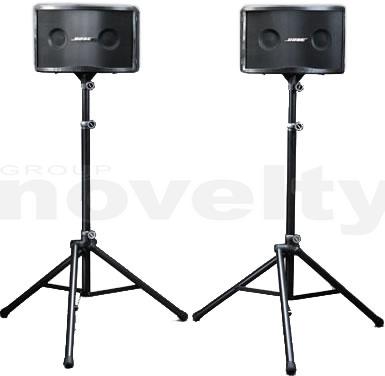

• A full complement of brackets and stands available
• Requires active equalization for best performance

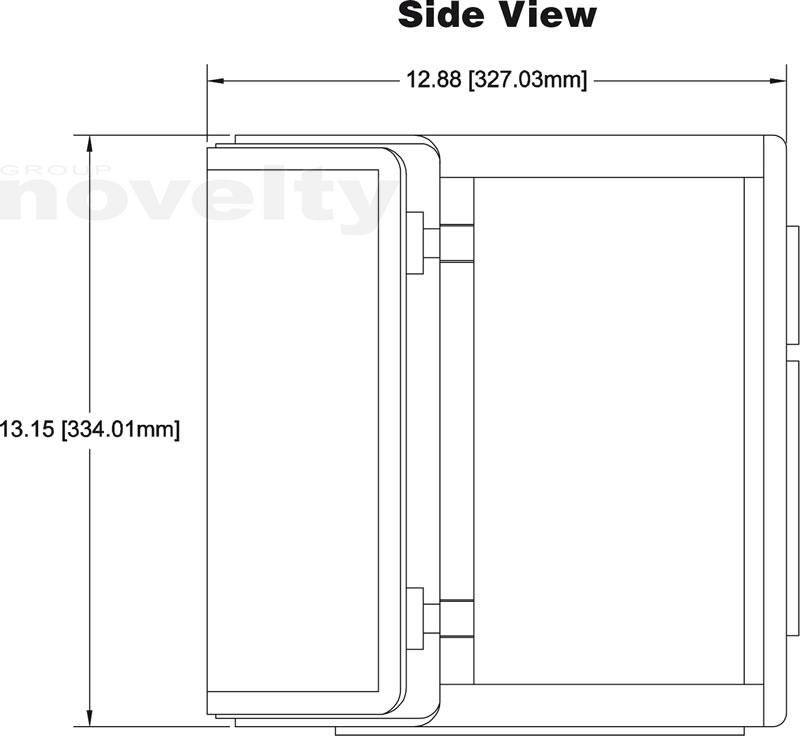

Physical

• Enclosure ?Mica-reinforced structural foam, textured
• Environmental ?Outdoor per IEC 529 IP55

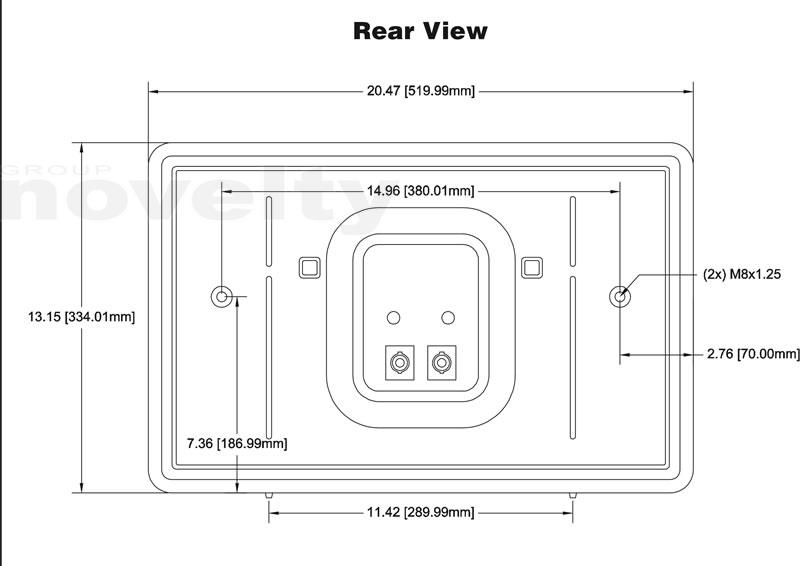

• Connectors ?Two (2) parallel-wired NL4 Neutrik® Speakon® connectors

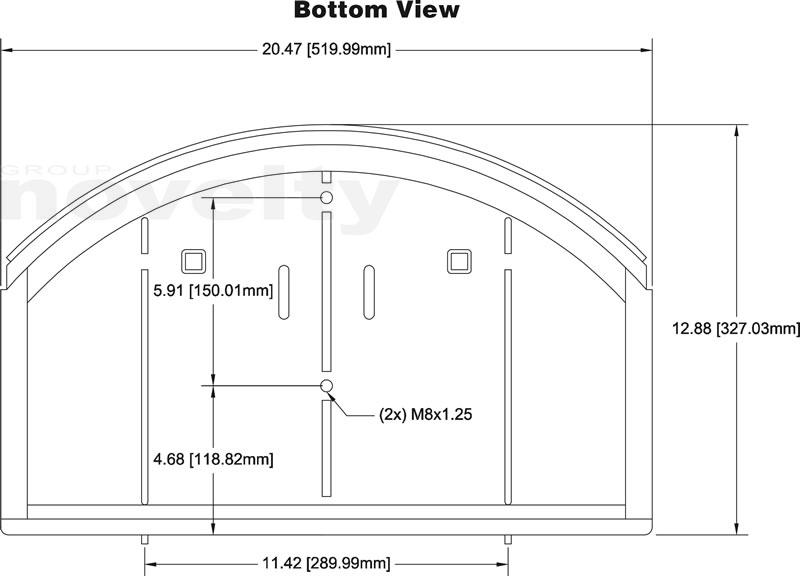

• Suspension / Mounting ?Four (4) M8 x 1.25 inserts (2 back, 2 bottom)
• Color ?Black
